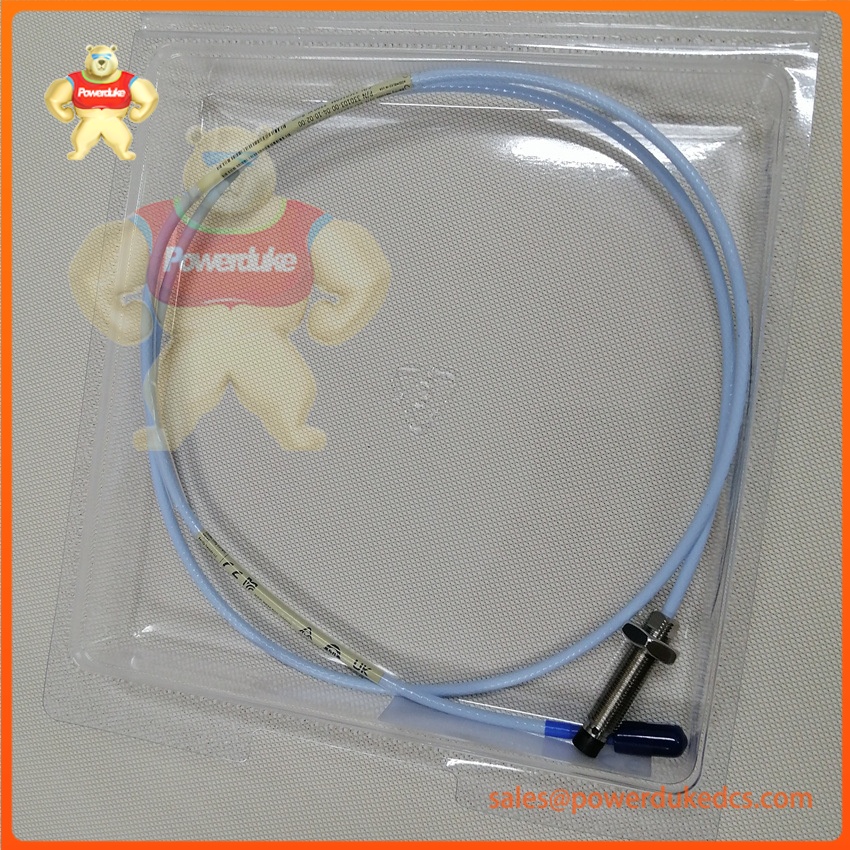

Bently Nevada 129715-138-040-05-CN 3300 XL 8mm Probe | Factory Sealed

Description Meta Description Get technical specifications, option code breakdown, and warehouse inventory control recommendations for the Bently Nevada 129715-138-040-05-CN proximity probe.   Technical Evaluation & Stocking Strategy Bently Nevada 129715-138-040-05-CN is a 3300 XL 8mm proximity probe assembly equipped with a 3/8-24 threaded unthreaded option and integrated flexible stainless steel armor. Designed for non-contact dynamic displacement and vibration measurements, this eddy current sensor converts the physical gap between the probe tip and a target shaft into a linear DC voltage via an external Proximitor module—though your mileage may vary depending on target material composition, cross-talk interference, and final calibration settings. While managing continuous monitoring systems on high-speed centrifugal compressors, I have found that ignoring probe mechanical wear is a recipe for sudden instrumentation trips. Because these sensors are directly exposed to harsh internal machine environments, physical armor crushed by careless technicians or oil contamination inside the coaxial connector will instantly blind the 3500 monitoring rack. Keeping this exact configuration as a critical Category A spare ensures you avoid costly extended outages during scheduled machinery rollouts.   Core Hardware Specifications Parameter: Value Brand: Bently Nevada (Baker Hughes) Model Number: 129715-138-040-05-CN Product Type: 3300 XL 8mm Proximity Probe with Flexible Armor Thread Type: 3/8-24 UNF thread profile Unthreaded Length (138): 13.8 inches Overall Case Length (040): 4.0 inches Total Length Option (05): 0.5 meter (50 cm) overall length Approvals Option (CN): Country-specific certification for China (NEPSI/CCC hazardous area)   Scenario Analysis and Field Applications Deploying this intrinsically safe probe onto an active gas turbine fluid film bearing housing requires absolute physical alignment precision. In high-vibration applications, the flexible stainless steel armor shields the delicate coaxial core from internal shearing forces. Well, technically it maintains exceptional scale factor linearity down to 7.87 V/mm, but only if you use the proper click-type torque wrench during installation to prevent stripping the thin casing threads. If your plant manages multiple turbo-machinery trains using the 3300 XL standard, do not cross-mix different probe lengths carelessly. An option code 05 probe requires a matching 4.5-meter extension cable to interface with a standard 5.0-meter Proximitor sensor. Mismatching the total system electrical length completely skews the calibration curve, leading to false high-vibration alarms inside your SCADA system.   Maintenance Constraints and Non-Recommended Deployments Avoid exposing the raw gold-plated click-loc coaxial connector to open water or conductive sludge before final assembly. Moisture inside the junction introduces parasitic capacitance, which disrupts the high-frequency RF signal path and drives the Proximitor output into a hard negative limit fault. This model is not recommended for applications where the target shaft material differs significantly from standard AISI 4140 carbon steel without custom factory calibration. Eddy current probe systems are highly sensitive to target metallurgy; installing this probe over a stainless steel or chrome-plated surface without adjusting your calibration metrics will lead to massive measurement errors.   Inventory Control Recommendations Critical Spares Classification: Category A (High Criticality, Low Usage Frequency) Buffer Stock Level: 2 units on-site per active machinery train asset Reorder Point (ROP): Trigger a replacement order immediately when active shelf safety stock drops below 1 unit Vendor Management: The -CN suffix features extended global factory lead time variability; bundle your requirements under a consolidated frame agreement with an authorized channel distributor to secure safety stock allocation before emergency replacement demands occur.   Quick Conclusions Maintain a minimum of two factory-sealed, armor-protected units on-site for emergency bearing inspections. Always match the total system length (probe plus cable) to the exact specification of the Proximitor sensor body. Insulate and wrap the coaxial connection points with self-fusing silicone tape to prevent oil ingress. Never reuse a probe that exhibits deep scores or deformation on the plastic tip face.   FAQ What does the -CN suffix represent on this Bently Nevada part number? The -CN code signifies specific region-based hazardous area pattern approvals required for importation and deployment within industrial zones in China. Can I use this probe directly with a 3300 XL 11mm Proximitor sensor? No. The 8mm probe geometry requires a dedicated 3300 XL 8mm Proximitor sensor; pairing it with an 11mm or 25mm series component will cause total loop calibration failure. How do I check for an internal open circuit on the shelf? Set your digital multimeter to resistance mode and measure between the center pin and the outer shell of the coaxial connector; a normal, functional probe typically reads a very low loop resistance (under 5 ohms depending on length).   Channel Adaptation Notes B2B Marketplace: Use the full string “129715-138-040-05-CN” in titles to capture procurement agents looking for specific regional replacement variations. Internal CMMS System: Tag this item as an “API 670 Machinery Protection Asset” to ensure it bypasses standard low-priority stock reduction initiatives. Bently Nevada 3500/05-01-03-02-00-01 Machinery Protection System Rack Bently Nevada 330106-05-30-10-02-00 8mm Proximity Probe Bently Nevada 9200-01-01-10-00 Seismoprobe Velocity Transducer Bently Nevada 177230-01-01-05 – Vibration Monitoring Sensor
